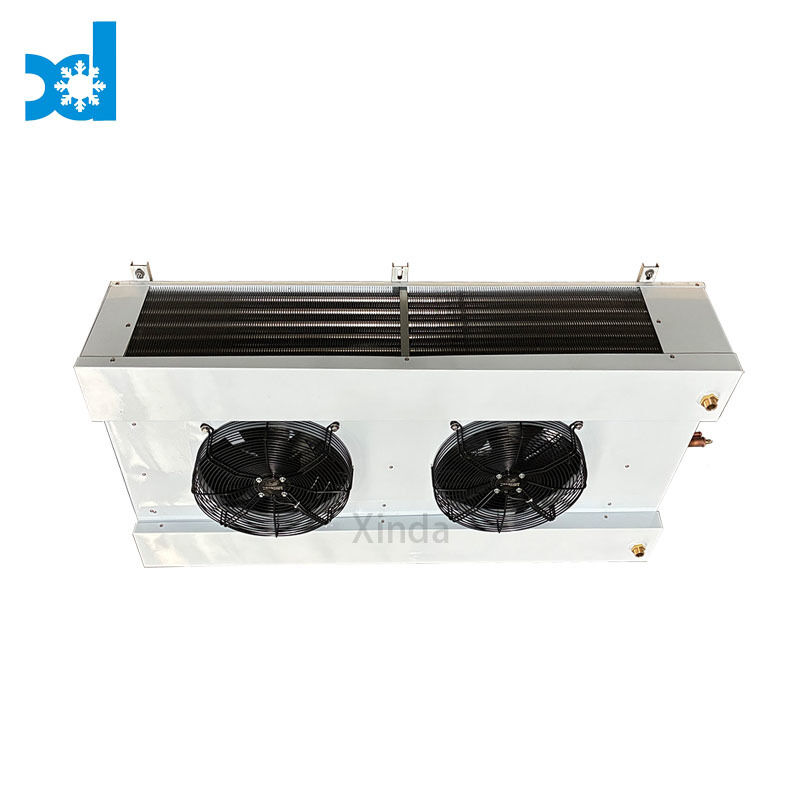

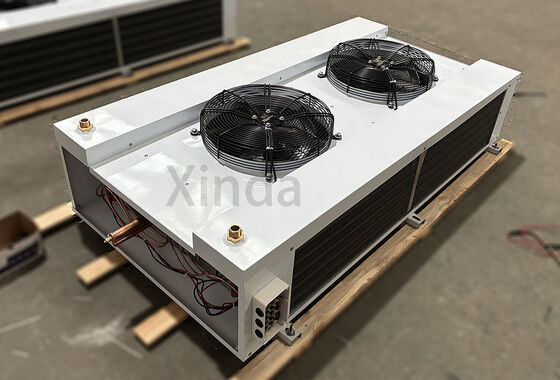

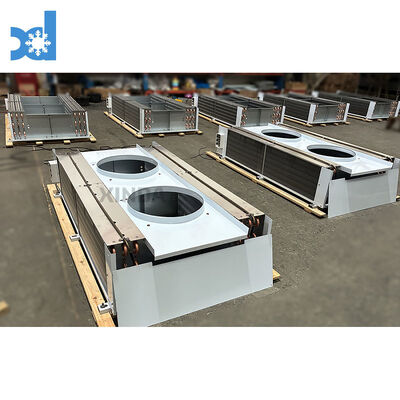

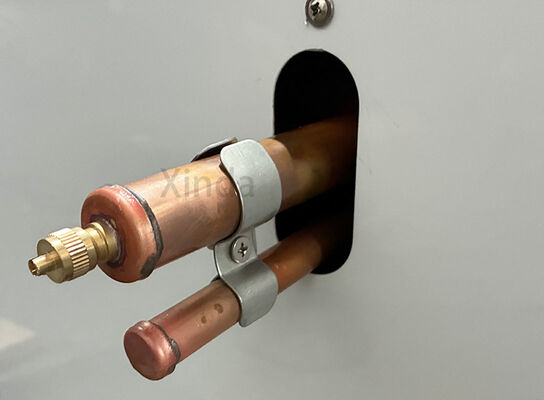

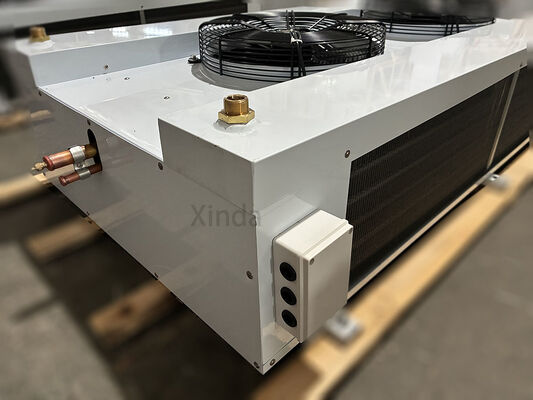

Factory Direct Industrial Air Cooler Double Side Blow Unit Cooler Rooftop Evaporator For Vegetable Cold Storage
Product Details:
| Place of Origin: | China |
| Brand Name: | Xinda |
| Certification: | ISO/CE |
| Model Number: | CDD-100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 508-662 per unit |
| Packaging Details: | Wooden case packing |
| Delivery Time: | 15-30 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 3000 units per month |
|
Detail Information |
|||
| Suitable Room Temperature:: | DL: -5~+5, DD: -15~ -20, DJ: Below -25 Degree | Standard Package:: | Wooden Case And Pallet |
|---|---|---|---|
| Type Of Evaporator:: | Air Cooler | Power Supply:: | 380V/50Hz/3phase Or 220V/50Hz/1p |
| HS Code:: | 84189910 | Production Capacity:: | 3000 Pieces / Month |
| Origin:: | China/Shengzhou | Shell Material: | Plastic Sprayed Metal Plate /Stainless Steel |
Product Description
Product Description
Refrigeration capacity of this series covers from4.4KW to39.4KW, fitting with different refrigerant such as R134a·R404A·R507A·R407C·R22.
Characteristics
Scientific structure, high efficient, frost evenly, save power and bw running cost;
Match with axial fan quiet models that offer strong air flow in long shot rang;power saving, long life cycle;
Long distance air supply ducts can be used according to customer requirement;
Lead to perfect tightness between pipe and fin after expansion processing;
Match with stainless electric heater in high insulating property, defrost efficiently in shot time;
The heat exchanging coil pass gas tightness test up to 2.6MPa air pressure;
Stainless Steel or painted stan board, to meet your different demands.
Sphere of Application
High temperature type:
(cold room temperature 12~- 2ºC)fin space:4.5mm;
Medium temperature type:
(cold room temperature-2 ~- 10ºC) fin space:6.0mm;
Low temperature type:
(cold room temperature - 10~-31ºC)fn space:9.0mm;
Made for customers
Sphe
re of application
Technical Parameter
Product Photos
FAQ
Q1.Are you a factory or a trading company
A1.We are a factory.
Q2.Which refrigerant do you need?
A2.R22,R404a and accept customers' request.
Q3. Which condenser do you prefer?
A3.Air cooled /water cooled and evaporative cooled tower.
Q3. What is the ambient temperature and water inlet temperature?
A3.Refrigerating capacity and power input based on ambient temperature 32ºC, condensing temperature 45ºC.
(PS: If Rack run at higher/lower evaporating temperature or ambient temperature, please contact with our company)
Q5. What is the power?
A5.Rack main power supply is 3 phase,380V/50HZ, control power supply is 1 Phase, 220V/50HZ.
(PS:We can make the power according to your request)
Q6. What is your warranty?
A6.We can assure you one year against manufacturing defect.
Want to Know more details about this product
