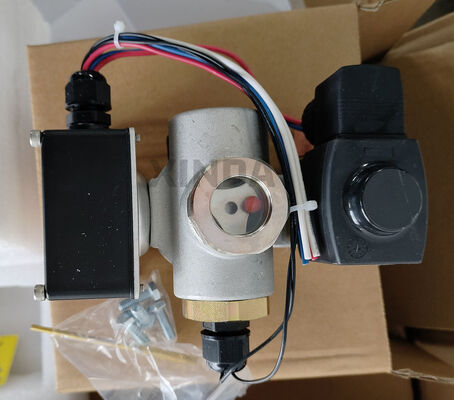

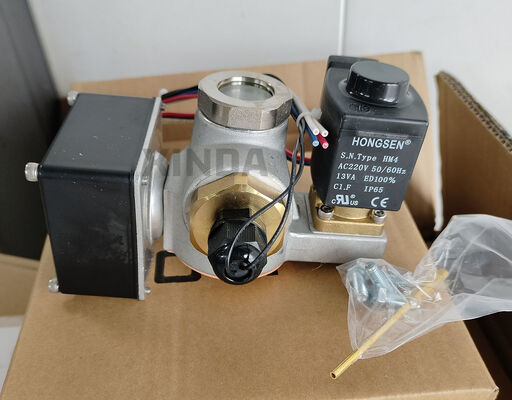

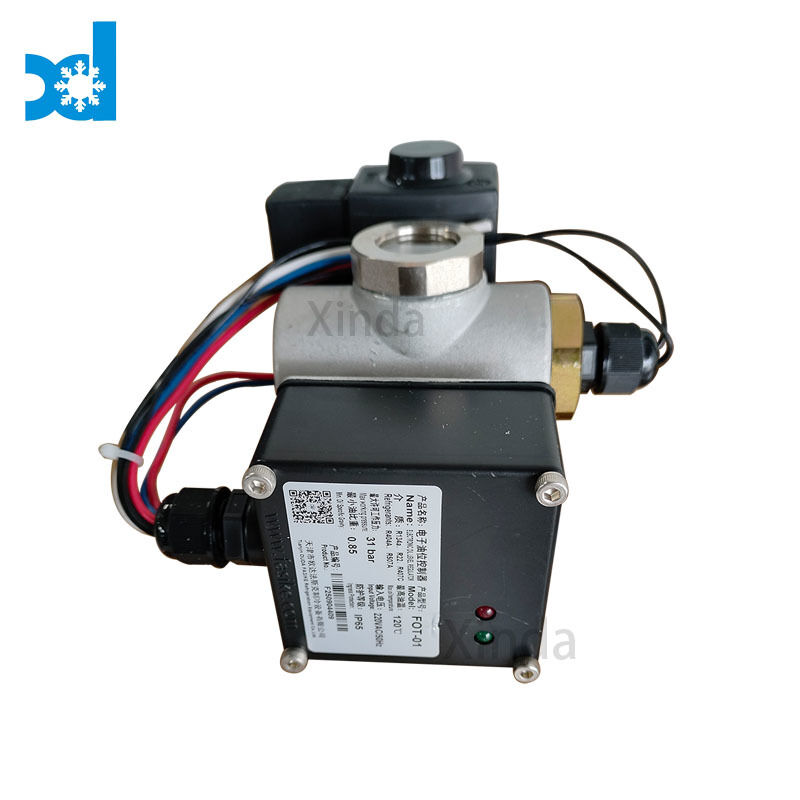

Electronic Ol Level Regulator for Semi-hermatic Piston Compressor Refrigeration System Part
Product Details:
| Place of Origin: | China |
| Brand Name: | Xinda |
| Certification: | RoHS, ISO, CE, CCC |
| Model Number: | FOT-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | USD 145-158 per unit |
| Packaging Details: | wooden case |
| Delivery Time: | 15-30 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 3000 units per month |
|
Detail Information |
|||
| Voltage: | From 220V To 440V | Standard Package:: | Carton Packing |
|---|---|---|---|
| Ingress Protection:: | IP65 | Max Working Pressure:: | 31bar |
| Min Oil Specific Gravity:: | 0.85 | Max Oil Temperature:: | 120℃ |
| Refrigerants:: | R134A/R22/R407C/R404A/R507A | ||
Product Description
FOT series electronic oil level controller
FOT series products are an intelligent compressor oil level controller, which is divided into:
"L" and "1" two oil supply forms are designed.
"L" oil supply form oil level controller, lubricating oil is directly injected into the compressor crankcase from the fuel injection port, suitable for semi-enclosed piston compressors and fully enclosed scroll compressors with low pressure areas in the oil storage tank.
"1" oil level controller in the form of oil supply, lubricating oil is sprayed into the compressor suction pipe through the oil connection pipeline, suitable for semi-closed scroll compressors with oil storage tanks in the high pressure area, screw compressors with built-in oil separators.
Input voltage: 220VAC/50Hz;
Maximum permitted working pressure: 31bar;
Maximum oil temperature: 120°C;
The maximum operating pressure difference of the oil circuit solenoid valve; 21bar；
Contact capacity: 3A/220VAC/50Hz;
Oil Interface Specification: 1/4" SAE;
Applicable refrigerants: R134a, R22, R407C, R404A, R507A.
