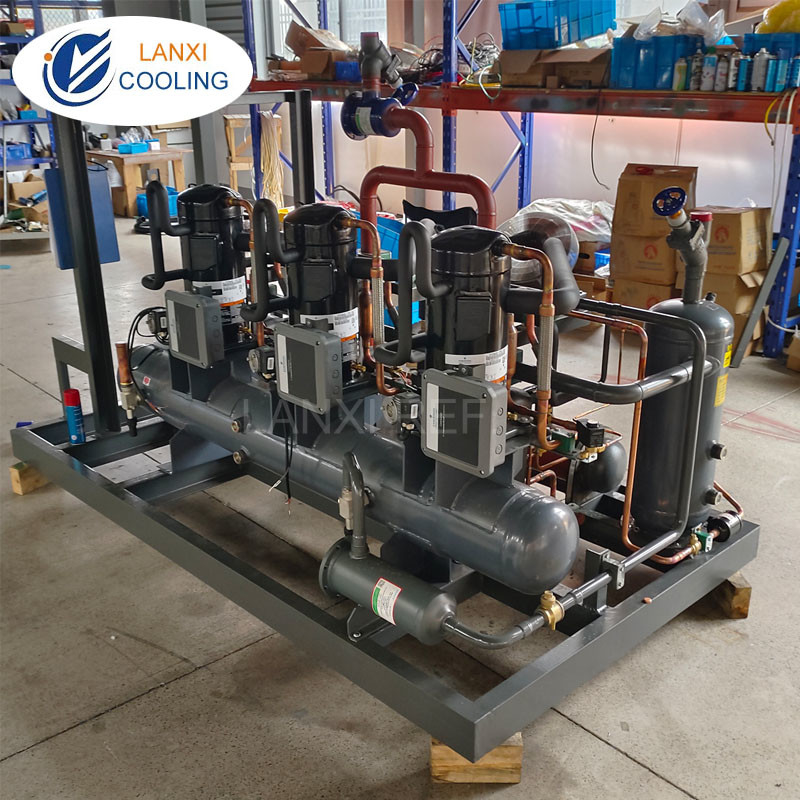

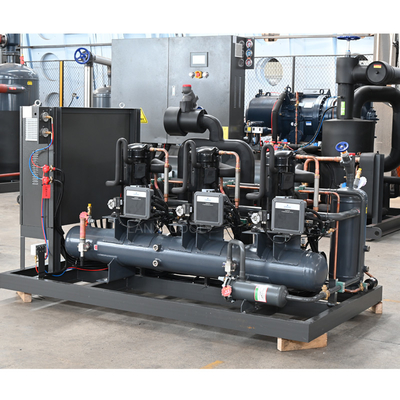

Emerson Three Parallel Copeland Scroll Compressors Condensing units for Low Temperature Refrigeration System Coldroom
Product Details:
| Place of Origin: | Zhejiang, China |
| Brand Name: | LanXi |
| Certification: | ISO9001 |
| Model Number: | LX-ZF139KQE Three |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 4000-4500per set |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15-30 workdays |
|
Detail Information |
|||
| Supply Ability :: | 200 Piece/Pieces Per Month | Delivery Time:: | 15-30 Days |
|---|---|---|---|
| Packaging Details :: | Standard Wooden Box | Applicable Industries:: | Hotels, Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Retail, Food Shop, Construction Works , Food & Beverage Shops |
| Warranty Of Core Components: | 1 Year | After Warranty Service :: | Online Support |
| Port:: | Ningbo/Shanghai/Guangzhou | Color:: | Black & Grey |
| Payment Terms:: | TT/LC/Western Union | Core Components: | Compressor, Reservoir,Oil Separator Etc. |
| Dimension(L*W*H): | Customized | Usage: | Cold Storage Room Refrigeration Parts |
| Refrigerant: | R22 | Brand Name: | Emerson |
| Product Name: | Scroll Compressor Units | Voltage: | 380v/3ph/50hz |
Product Description
Product Description
1.Reliable system: famous brand compressor, PLC controller, high efficient oil separating system.
2.Emerson low temperature scroll compressor, with the features of high efficiency, long service life, tiny vibration and low noise
3.this series products have a complete set of world famous components, protection devices for compressor wrong direction, over heat, over load, over discharging temperature, low oil level, over high/low pressure of oil flow etc.
4.the unit is matched with economizer, which can effectively increase the capacity for low temperature operation.
2.Emerson low temperature scroll compressor, with the features of high efficiency, long service life, tiny vibration and low noise
3.this series products have a complete set of world famous components, protection devices for compressor wrong direction, over heat, over load, over discharging temperature, low oil level, over high/low pressure of oil flow etc.
4.the unit is matched with economizer, which can effectively increase the capacity for low temperature operation.
The accessories of the device include Compressor, condenser , pressure controller, pressure oil gauge, pressure sensor,filter vat filter core, liquid angle valve , accumulator, suction check valve, oil separator , oil safety valve, oil pipe ball valve, oil cooler, oil cooler valves, filter, oil dry filter, filter core, solenoid valve, economizer, sight glass, expansion valve,touch screen, LP sensor , PLC controller, Siemens HMI,please contact us for the detailed configuration table.
If you don't know which model is suitable for you, please contact we without hesitation, after tell us your requirements, we shall be glad to give you our professional advise.

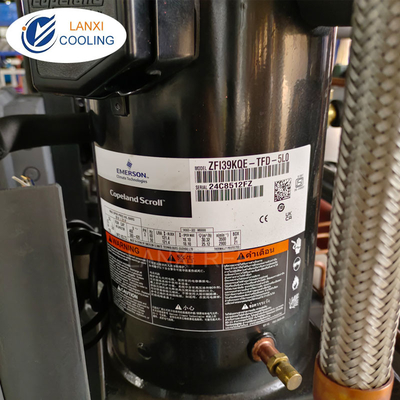

Features and advantages of ZFI39KQE:
The ZF series compressors can operate at a condensation temperature as low as 4.4°C, providing a high seasonal energy efficiency ratio. The compressor is equipped with a dynamic exhaust valve that can adjust the compressor exhaust pressure as required to prevent gas recompression inside the compressor and significantly improve energy efficiency under high pressure ratios. The ejector enhanced vapor injection technology makes the ZFI compressor have higher energy efficiency than single-stage compressors in low-temperature applications and has excellent performance. Emerson Copeland compressor ZFI39KQE
Compressor protection:
The ZF series compressors are equipped with built-in motor protection to prevent motor overheating caused by phase loss or insufficient refrigerant charge. The ZF series is configured with a DTC liquid injection valve to control the compressor exhaust temperature.
The ZFI series can be optionally equipped with Emerson's EVI ejector enhanced vapor injection accessory to control the ejector enhanced vapor injection circuit and ensure that the compressor operates at a safe exhaust temperature. Emerson Copeland compressor ZF39KQE-TFD-5L2 is a 10-horsepower HP low-temperature refrigeration scroll compressor with a displacement of 25.1 cubic meters per hour, a locked rotor current (LRA) of 121.4 amperes, a maximum operating current (MOC) of 18.1 amperes, and a maximum continuous operating current (MCC) of 20.3 amperes.
The ZF series compressors can operate at a condensation temperature as low as 4.4°C, providing a high seasonal energy efficiency ratio. The compressor is equipped with a dynamic exhaust valve that can adjust the compressor exhaust pressure as required to prevent gas recompression inside the compressor and significantly improve energy efficiency under high pressure ratios. The ejector enhanced vapor injection technology makes the ZFI compressor have higher energy efficiency than single-stage compressors in low-temperature applications and has excellent performance. Emerson Copeland compressor ZFI39KQE
Compressor protection:
The ZF series compressors are equipped with built-in motor protection to prevent motor overheating caused by phase loss or insufficient refrigerant charge. The ZF series is configured with a DTC liquid injection valve to control the compressor exhaust temperature.
The ZFI series can be optionally equipped with Emerson's EVI ejector enhanced vapor injection accessory to control the ejector enhanced vapor injection circuit and ensure that the compressor operates at a safe exhaust temperature. Emerson Copeland compressor ZF39KQE-TFD-5L2 is a 10-horsepower HP low-temperature refrigeration scroll compressor with a displacement of 25.1 cubic meters per hour, a locked rotor current (LRA) of 121.4 amperes, a maximum operating current (MOC) of 18.1 amperes, and a maximum continuous operating current (MCC) of 20.3 amperes.
Product Advantages
1. Quality assurance
All compressors and well-known brand accessories are 100% genuine.
2. Flexible configuration
The accessories of the unit can be customized according to needs.
3. Exquisite design
Not only is the appearance beautiful and generous, but all pipes have been professionally designed. After years of customer feedback, the pipeline design meets the design requirements during the operation of the unit.
4. High quality
In addition to the advantages of using high-quality accessories, professional design, and stable operation, the sheet metal quality is excellent. The appearance adopts an overall spraying process, with uniform and bright colors that do not peel off paint.
All compressors and well-known brand accessories are 100% genuine.
2. Flexible configuration
The accessories of the unit can be customized according to needs.
3. Exquisite design
Not only is the appearance beautiful and generous, but all pipes have been professionally designed. After years of customer feedback, the pipeline design meets the design requirements during the operation of the unit.
4. High quality
In addition to the advantages of using high-quality accessories, professional design, and stable operation, the sheet metal quality is excellent. The appearance adopts an overall spraying process, with uniform and bright colors that do not peel off paint.
Company Profile
Zhejiang Lanxi Refrigeration Equipment Co., Ltd is located in Shengzhou,Shaoxing,Zhejiang.We are a manufacturer specializing in refrigeration and air conditioning equipment.Our main equipment is Cold room Evaporator, Air-cooled Condenser ,Condensing unit,Compressor,Evaporative condenser and so on.We have more than ten years of experience in the field of cold storage, with high-quality technology and professional product knowledge. We are able to provide consumers with professional and high-quality technical services.The quality of our products can be guaranteed.
FAQ
Q1.Are you a factory or a trading company
A1.We are a factory.
Q2.Which refrigerant do you need?
A2.R22,R404a and accept customers' request.
Q3. Which condenser do you prefer?
A3.Air cooled /water cooled and evaporative cooled tower.
Q3. What is the ambient temperature and water inlet temperature?
A3.Refrigerating capacity and power input based on ambient temperature 32ºC, condensing temperature 45ºC.
(PS: If Rack run at higher/lower evaporating temperature or ambient temperature, please contact with our company)
Q5. What is the power?
A5.Rack main power supply is 3 phase,380V/50HZ, control power supply is 1 Phase, 220V/50HZ.
(PS:We can make the power according to your request)
Q6. What is your warranty?
A6.We can assure you one year against manufacturing defect.
