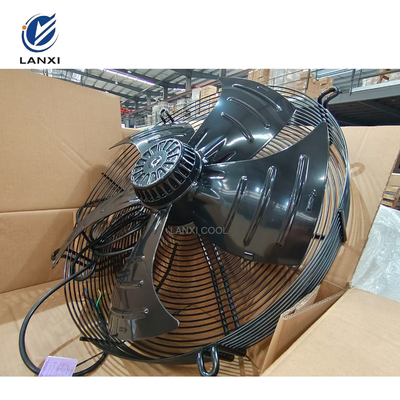

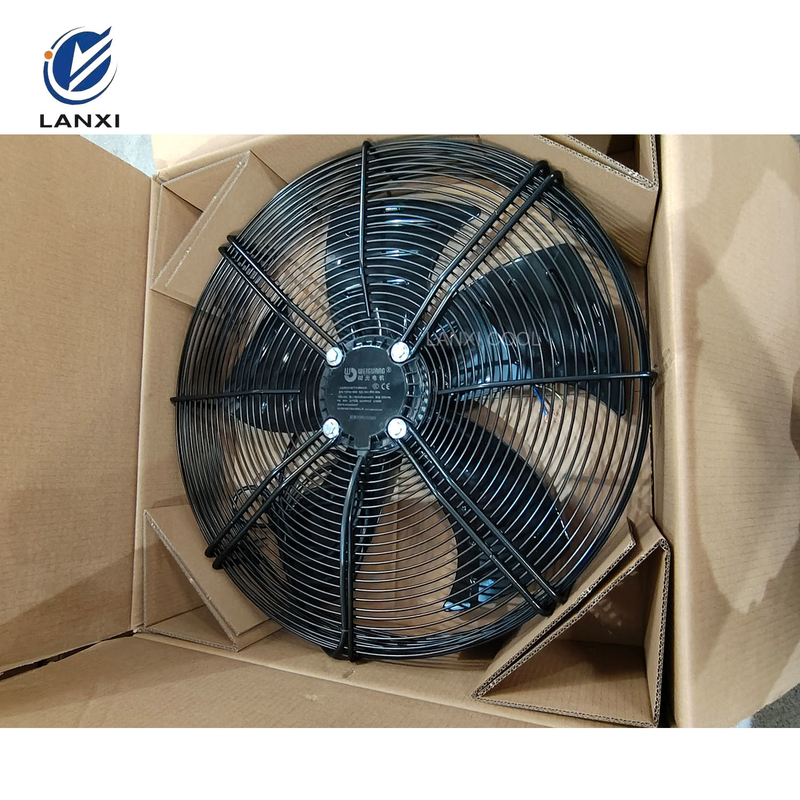

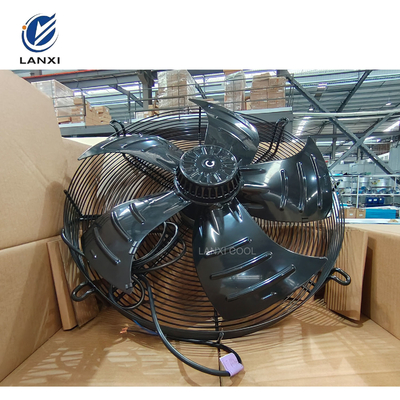

Condenser Fan Motor for Refrigeration System Axial Fan 220V/380V Blowing Axial Fan Motor
Product Details:
| Place of Origin: | China |
| Brand Name: | LanXi |
| Certification: | RoHS, ISO, CE, CCC |
| Model Number: | LX-YWF-350S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | USD 28-35 per unit |
| Packaging Details: | wooden case |
| Delivery Time: | 15-30 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 3000 units per month |
|
Detail Information |
|||
| Voltage: | From 220V To 440V | Standard Package:: | Carton Packing |
|---|---|---|---|
| Diameter Range: | 250mm - 600mm | Frequency: | 50/60Hz |
| Production Capacity:: | 6000 Pieces / Month | Origin:: | China/Shengzhou |
| HS Code: | 84186920 | Package Size: | 45cm * 45cm * 17cm |
| Type: | Axial Fan | Electric Current Type: | AC |
Product Description
1.LX-YWF series Axial Fan have characteristics of compact structure,convenient installation, reliable operation, low noise, energy saving and high efficiency.
2.LX-YWF series axial fan motors are widely used in condenser, evaporator and other refrigeration equipment and ventilating cycle areas.
3.The insulation of YWF series axial fan is class F,All the motor have thermal protector.
4.We can afford motor with specified voltage from 220V to 440V and frequency with 50/60Hz.
5.Motor adopt junction box type or lead.
6.The service lift of motor is over 30000 hours.
7.All of the motor passed CCC, CE approval.
8.Type selection: High Temperature Type,Conventional Temperature Type and Low Temperature Type can be sellected according to specific requirement.

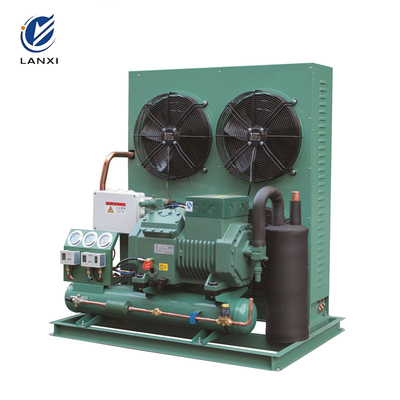

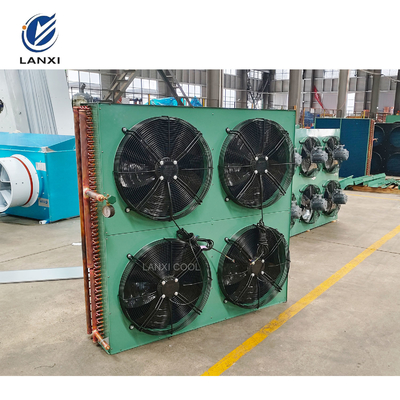

Widely used in refrigeration equipment or facilities such as supermarket freezers and cold stores, ice machines, chillers, condensing units, dehumidifiers, evaporators, side-wall fans, fire-fighting fans and central air-conditioning fans, etc.
Mode of operation: S1
Insulation class:B,F
Type of protection: lP44,IP54
Ambient temperature:-30ºC~60ºC
Certificates :CCC,CE,UL
Target energy efficiency: ErP2015
